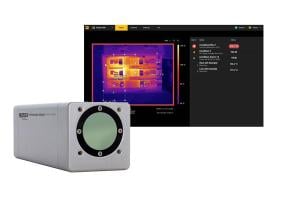

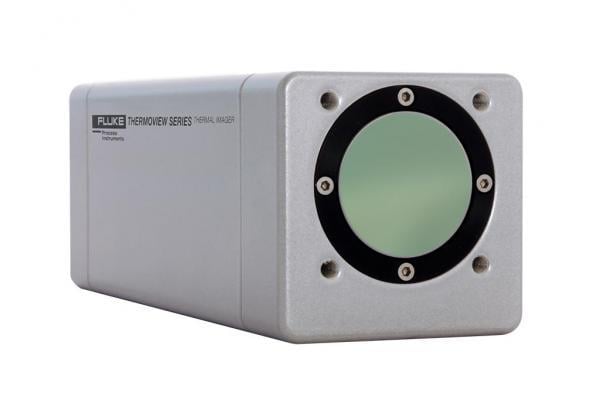

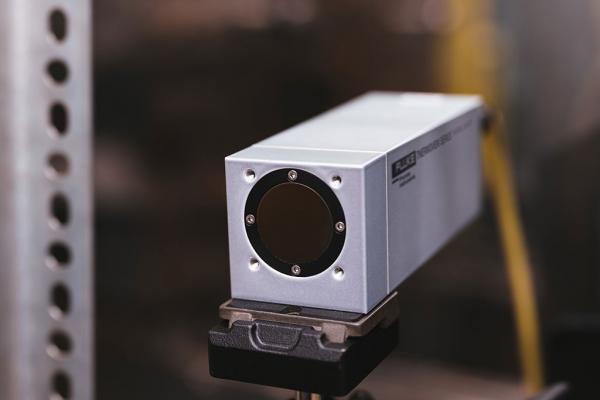

ThermoView TV30 Thermal Imager
No additional software required

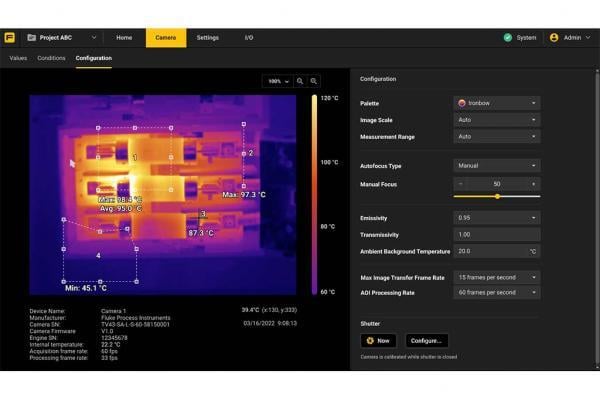

- TV30-SA: An accessible, standalone thermal imaging solution with onboard analytics and remote setup via web browser
- TV30-GE with ThermoView Software for enhanced inspection capabilities: Ideal for complex tasks
Designed for the toughest conditions
- Rugged and reliable IP67 housing is resilient and built to last
- With an air purge, water-cooling jacket, and other accessories available, you can be sure your equipment will stand up to whatever is thrown at it
Avoid costly downtime
- The TV30 identifies defects and can alert you when any anomalies are detected
- Continuous 24/7 monitoring
Key Features
- Multiple fieldbus protocols for simple integration
Integrating a system is never easy. Without the right tools, it can cost you time, money and frustration. Our fieldbus protocols are designed to make integration with most PLCs simple and cost-effective. OPC UA, and MQTT are all supported by our gateways, so you can avoid needing hardware I/O devices.
- Accessories to satisfy the most difficult installations
Air purge, water cooling, and outdoor enclosures provide added security in the most demanding applications.
For additional infrared camera key features, check out the ThermoView TV30 Datasheet or speak with an expert to discuss how the imager could support your application.
Software

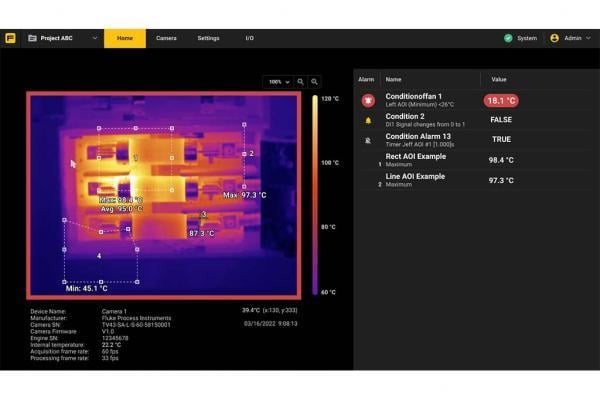

The intuitive ThermoView software enables you to take control of multiple parts of your process like never before with advanced analytical tools, auto-alarming features, and more. Several key features include:
- User-configurable and quick setup options that makes installation fast and easy without unnecessary downtime
- Establish alarms or signals that interface to discrete I/O to better control your process
- Customizable Areas of Interest with advanced pass/fail logic – allowing you to perform product inspections, monitor process temperature and more all at once
- Independent, continuous, intermittent, and/or remote evaluation of temperature conditions so you can read temperature data whenever or wherever you need it
For additional key features, check out the ThermoView TV30 Brochure or speak with an expert to discuss how the software could support your application.
System Features
Includes thermal imager, software, and a vareity of accessories for a full system experience.
| Feature | Description |
|---|---|
| Measuring Range | -10 to 1300°C (14 to 2372°F) |
| Measurement Accuracy | Down to ±2°C or ±2°% (reading) |
| Image Resolution | 320 x 240 (76,800 pixels) & 640 x 480 (307,200 pixels) |
| Frame Rate | 9 or 60 frames/second |
| Spectral range | 8 – 14 μm |
| Detector | Uncooled focal plane array |
| Focus Range | Standard : 220 mm (8.7″) to ∞ Wide Angle : 100 mm (4.0″) to ∞ Telephoto : 190 mm (7.5″) to ∞ Motorized remote focus |
| Emissivity Correction | 0.10 to 1.00 |
Communications
| Supported Protocols | TV33SA/TV36SA: MQTT, OPC UA, TCP, DHCP, UDP, mDNS (Bonjour) TV33GE/TV36GE: DHCP, mDNS (Bonjour), GigE Vision ver. 2.0 &1.2, GenICam compliant |
|---|---|
| Inputs/Outputs | TV33SA/TV36SA: 3 on board inputs/3 onboard outputs, direct interface to additional remote I/O TV33GE/TV36GE: Interface to remote I/O via ThermoView software |
| LED Display | Power supply indication, system error codes |

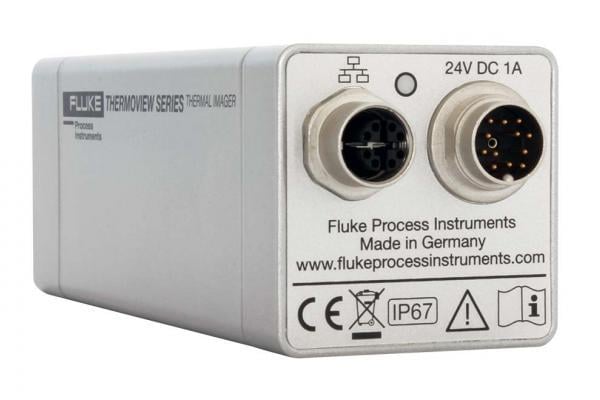

| Power Supply | 24 VDC ± 20% or PoE (IEEE 802.3at) |
| Software | TV33SA/TV36SA: Web interface TV33GE/TV36GE: ThermoView Software, Web interface (basic configuration) |
Environmental
| Operating Temperature | -10 to 50°C (14 to 122°F) |
|---|---|
| Storage Temperature | -20 to 70 ºC (-4 to 158 ºF) |
| Humidity | Operating and storage 10 % to 95 %, non-condensing |
| Shock Resistance | IEC 60068-2-27 (mechanical shock): 50 G, 6 ms, 3 axis |
| Vibration Resistance | IEC 60068-2-26 (sinusodial shock): 3 G, 11 to 200Hz, 3 axis |
| Environmental Protection | IP67 (NEMA 4) with all lenses installed |
| Dimensions (W x H x L) | Approximately 50 x 50 x 133 mm (1.96 x 1.96 x 5.23″) |
Standards and Compliance
| EMI, RFI, EMC | EN 61326-1:2013 IEC 61326-1:2013; (Industrial) |
|---|---|
| EC Directive 2011/65/EU | RoHS Compliance amended by Directive (EU) 2015/863 |
| KCC | Electromagnetic Compatibility applies to use in Korea. This product meets requirements for industrial (Class A) electromagnetic wave equipment. |
Note: See accessories section for additional environmental protection products for extreme conditions. Click here if you would like to speak with an expert to discuss your application.
Automotive and Aerospace
|
Metals Processing |
| Construction Materials | Utilities |
Solar and Semiconductor
|
Other
|
| Outdoor Enclosure
The Outdoor Enclosure is an IP66-rated housing unit that ensures your fixed thermal imaging camera won’t stop due to bad conditions. With weatherproofed installations, the Outdoor Enclosure provides a high protection rate, sunshield, and a temperature-controlled heater for cooler environments to ensure your thermal imager is sees the temperatures you need. Window materials are available to allow both thermal and visible image to be seen. Learn more from our applications engineer. |
| High-Temp Protective Enclosure
The High-Temp Protective Enclosure with integrated air purge is designed to protect the ThermoView TV30 infrared camera from ambient temperatures up to 200°C (392°F) when connected to cooled water. Learn more from our applications engineer. |
| I/O Accessories
Multiple I/O accessories – including Relay, Digital In, and Out or Analog cards – can be added in order to connect to an existing DCS. With these options, you have the option to add additional automation control into your process so it can run by itself based on the parameters you establish. Learn more from our applications engineer. |
| Lens Options
30° x 22° Standard |
