AMH series

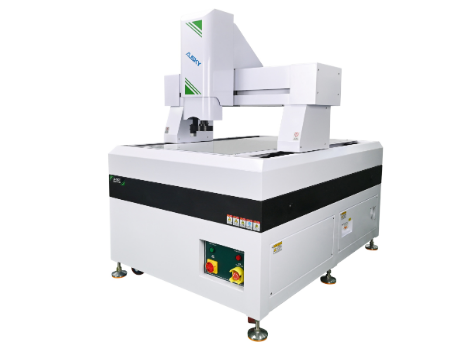

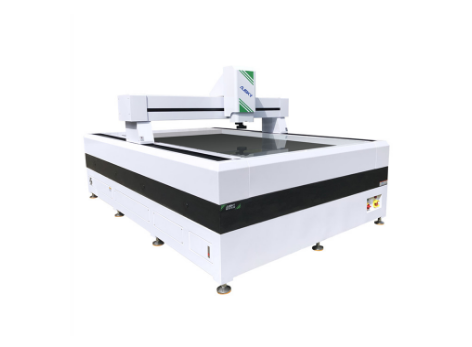

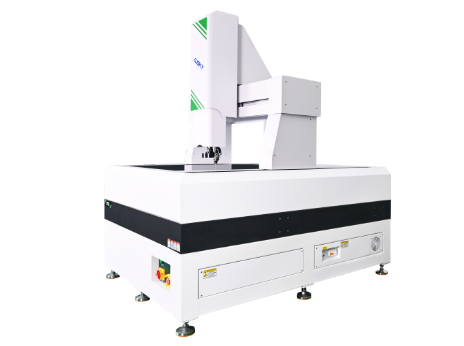

Gantry Large-Range CNC Video Meauring Machine

Gantry Large-Range CNC Video Meauring Machine is a medium-to-large-scale CNC video measuring machine independently developed by our company, which can realize efficient and accurate measurement of large-scale workpieces; it is suitable for the detection and quality control of precision parts. It has been widely used in machinery, electronics, hardware, plastic and other industries.

Add to wishlist

Description

Instrument Features:

Adopt High-precision granite gantry structure, difficult deformation, high stability, high-end good looking.
Imported high precision grating system.
Imported P-grade high precision linear guide rail and high precision ball-screw transmission.
Imported Panasonic servo system, high-precision, high-efficiency, high-stability.
Zoning adjustment of LED light source, available for multi directional projection.
Manipulator control CNC software, Auto focusing, Auto zoom ratio switching, Auto edge tracing, Auto light sensing, Auto measuring, Assurance measuring high efficiency.
Configured with leading edge specialized proprietary measuring software.
Configured with import RENISHAW high precision contacting type probe group. Configured with high precision laser tester, Realizable auto programming Co-axial complex measuring image / probe/ laser.

The measuring instrument mechanism:

Machine structure: marble flat base and gantry type mechanism, The equipment with high stable precision.
strong environmental adaptability, the whole machine is sturdy and difficult to deform.
Humanized operating mechanism designed with solid, simple and elegant.
powerful measurement software and easy for operation.

Parameter and Model		AMH650	AMH860	AMH1210	AMH1512	AMH2115	AMH2515
Workbench	Glass table size(mm)	808X568	1008X668	1300X1048	1600X1248	2200X1548	2606X1548
Workbench	Load-bearing weight(kg)	30	30	30	30	30	30
Travel	X axis(mm)	500	600	1000	1200	1500	1500
	Y axis(mm)	600	800	1200	1500	2100	2500
	Z axis(mm)	200	200	200	200	200	200
Image and measurement system	Display resolution(um)	1/0.5(Optional)
	Instrument precision(um)	(4+L/200)um
	Imaging system(CCD)	HD Digital Camera
	Zoom objective(X)	High Precision Zoom Lens Program Control
	Total video magnification(x)	30~200X
	Working distance(mm)	96mm
	Light source	LED programmable partition light source(Coaxial light source optional)
Outline dimension(mm)		1500X1140X1780	1720X1240X1780	2090X1630X1800	2390X1830X1850	3000X2130X1850	3350X2130X1850
Weight(kg)		1500	1800	2500	3500	6000	7000
Power supply		220V AC 50Hz /110V AC 60Hz
