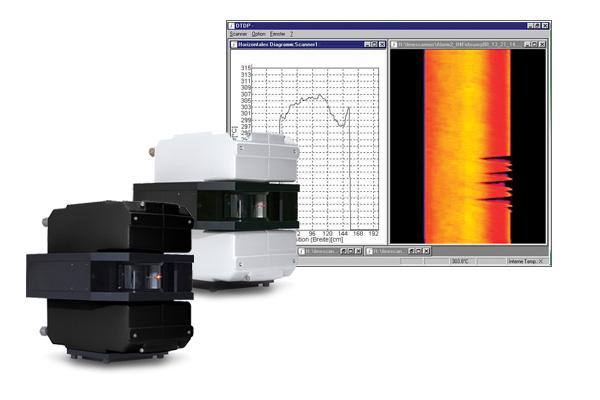

ES Sheet Extrusion Thermal Imaging System
The ES Thermal Imaging System for Sheet Extrusion from Fluke Process Instruments features a variety of linescanning systems that provide continuous, accurate and real-time thermal images and temperature measurements for moving processes and product.
Each system comes in a wide choice of spectral and temperatures ranges to accommodate a variety of applications. The series also features dedicated hardware and software options, which have been created specifically for specialized applications and industrial environments. The ES Thermal Imaging System is ideal for continuous web applications such as hot strip mills, continuous casting, glass wool production, laminating for both glass and plastics and more.
MP Linescanner
With scan speeds up to 300Hz and the ability to scan up to 1024 data points in a single scan, the MP Linescanner Series can provide a complete picture of even the highest speed manufacturing processes. Additionally, with a 90° field-of-view and up to 200:1 optics, each spot on the target surface is capable of being sampled up to three times, ensuring an accurate temperature reading.
Each linescanner also includes a built-in line laser for rapid alignment, resulting in lower installation costs. Built-in water cooling and air purge features, as well as optional waterproof housing, help maintain the scanner. The MP Linescanner Series also allows users to utilize existing networks with pre-wired cables, which connect to a standard PC for fast installations. The system’s versatile DataTemp® DP Software also lets you create custom operating parameters as well as easily display thermal images and temperature profiles.
Key Features:
- Real-time thermal imaging, scan speed up to 300Hz
- Up to 1024 measurement points per line
- Wide choice of spectral and temperature ranges
- Optical resolution up to 200:1
- Real-time color thermal images
- Accurate data analysis
- High-quality brushless motor (MTBF 40,000 h)
- Built-in Ethernet TCP/IP communications
- PC independent alarm output
- PC independent 4-20 mA interfaces (3 outputs)
- I/O module support for up to 10 sectors/zones (PC independent)
- Internal Line Laser for accurate alignment
- Rugged, waterproof IP65 housing
- Air purge keeps window free of dirt and condensation
- Built-in water cooling for ambient up to 180 °C (356 °F)
- Field-replaceable window
ES System Software
The intuitive ES System software displays each thermal image with overlaid customizable zones and results. The software features multiple alarm settings, with high alarms appearing red and low alarms appearing blue. Zone results can also be output to your PLC or SCADA system.
For example, in some applications, the web can move or can be divided into a number of bars (e.g., alternating adhesive-coated strips with non-adhesive strips on a carrier). With “generic sectors” the ES System can utilize the MP Linescanner to generate dynamic temperature data. By doing this, “generic sectors” can follow the web’s position as it moves and permanently provide accurate analytics for the specified area.
Additionally, by utilizing OLE for Process Control (OPC), the EC Thermal Imaging System can communicate with a variety of common process control systems. As a result, the system is more than a measurement tool and can be used as an integral part of your total process control system.
Key Features:
- Supports multiple product specific configurations (recipes)
- Text file alarm logging
- Fail-safe alarm logging
- Reference image for comparative analysis
- Saved thermal images can be played back like a time-lapse movie
- Multiple system interfaces digital and analog I/O, OPC, direct forwarding of data via ASCII
- Supports multiple MP Linescanners
- Password protected access levels
- Multiple language support
- Real-time ambient temperature compensation or emissivity adjustment
ES Extrusion Coating System Specifications
| Feature | Description |
|---|---|
| Temperature Range | wide variety of temp ranges and spectral responses |
| Optical Resolution | up to 200:1 (90% energy) |
| Ambient Temperature | 0 to 50°C (32 to 122°F), with internal water cooling 180°C (356°F) |
| Field of View | 90° |
| Points per Line | up to 1024 pixels |
| Scan Rate | up to 300 Hz |
For more information on technical specifications, please see MP Linescanner Technical Specs tab.
Standards and Compliance
| EC Directive 2014/30/EU | EMC |
| EC Directive 2011/65/EU | RoHS Compliance amended by Directive (EU) 2015/863 |
| EC Directive 1907/2006 | REACH amended by Directive (EU) 2020/2096 |
| EN 61326-1: 2013 | Electrical measurement, control and laboratory devices – Electromagnetic susceptibility (EMC) |
| EN 50581: 2012 | Technical documentation for the evaluation of electrical products with respect to restriction of hazardous substances (RoHS) |
| KCC | Electromagnetic Compatibility applies to use in Korea. This product meets requirements for industrial (Class A) electromagnetic wave equipment. |
The ES Process Imaging System can be used across numerous industries and is ideal for process monitoring and control, product monitoring, quality pass/fail checks and more in moving applications and discrete manufacturing processes. Click here if you would like to speak with an expert to discuss your application.
Several examples of where this system can be used include, but are not limited to, the following list below.
| Plastic Processing | |
| Adjustable Mounting Base
The Adjustable Mounting Base allows you to make small adjustments to where your linescanner is pointed, allowing you to gather more data from different parts of your process. |
| Power Supply Options
We offer several power supply options including 240 VAC, 24 VDC and 1.3 A. |
| Thermostat for Linescanner
The Thermostat for Linescanner accessory allows users to keep the linescanner housing temperature over the dew point, extending product life by avoiding damage due to condensed water in the interior of the unit housing. |
| Manufacturer’s Calibration Certificate
Based on NIST/DAkkS certified probes, our calibration certificate is available to ensure traceability. |
ES Extrusion Coating Thermal Imaging System is supported by a 2-year warranty. Our team is available to answer questions regarding your application and our product. Click here to schedule a time to speak with an expert.
