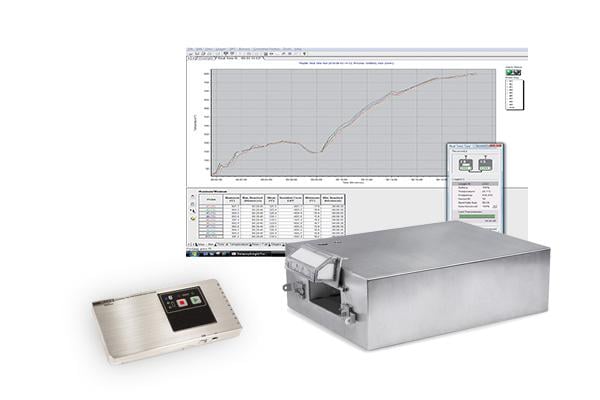

Datapaq® Furnace Tracker Sealed Quench System
The Furnace Tracker Sealed Quench Systems from Fluke Process instruments feature the Datapaq TP6 data logger, a sealed & quenchable thermal barriers from the SQ00 range, thermocouples and our intuitive Insight™ software to create a complete solution.
This system is designed specifically for the aluminum solution heat treatment process. The system features a fully sealed design incorporating a pressure relief system, which allows for the most efficient insulation and enables the system to travel through every stage of your process. It can also be used in other solution heat treatment processes up to 900°C (1652°F) such as that for Titanium.
Data Logger
The Datapaq TP6 is the perfect solution for the most demanding high-temperature profiling applications with a 316-grade machined stainless-steel case and IP67 rating. Once combined with the Datapaq Insight™ Software, you can display information from the data logger in real time via the optional Radio Frequency (RF) system or via standard USB/Bluetooth connections.
- Available in 10 and 20 channel configurations and two case styles
- Water resistant (IP67 rated)
- Communication via USB or Bluetooth
- Real time telemetry via USB, RF telemetry and Bluetooth
- Alkaline, NiMH and Lithium battery options
- Compatible with the Datapaq Insight™ for mobile application
Thermal Barriers
The Sealed Quenchable Thermal Barriers (SQ00) from Fluke Process Instruments travel through all three process stages – solution treatment, quench and aging – to create a temperature profile for the entire process. Results can be viewed in real-time by using an optional radio telemetry module or they can be downloaded and analyzed with our intuitive Insight™ software at the end of the process.
This barrier series features an easy to use two-part face plate design that enables quick thermocouple changes to be made.
Software
Every Furnace Insight™ software product is designed to convert your raw data into meaningful information that can be acted on. All three software options provide a clear user interface, context sensitive help screens and wizards to assist novice users. The ability to change the language and email results directly from software enables you to share information across the plant and across the world, whether you’re on a computer or mobile device.
Datapaq TP6 Data Loggers for Use in Sealed Quenchable Thermal SQ00 Thermal Barriers
| Model Number | TP6126/9 & TP6126/9-TM | TP6326/9 &TP6326/9-TM |
|---|---|---|
| Dimensions | 197 x 97 x 20 mm 7.8 x 3.8 x 0.8” |
177 x 124 x 20 mm 7 x 4.9 x 0.8” |
| Channels | 10 | 20 |
| Temperature range | -100 to 1370°C (-148 to 2498°F) Dependent on thermocouple type (Type K shown) |
|
| Connectivity | USB or Bluetooth* | |
| Memory capacity | 4 million data points | |
| Start/stop triggers | None (automatic), Manual, Rising/falling temperature, and time based | |
| Sampling interval | 0.2 sec – 50 mins with no telemetry 2 sec – 50 mins with RF telemetry* |
|
| Accuracy | ± 0.3 °C (0.5 °F) – Type K | |
| Resolution | ± 0.1°C (0.18 °F) | |
| Thermocouple type | Type K (J,N,T,R,S,B are available) | |
| Multiple run capability | Up to 10 profile runs before returning to PC | |
*Contact Fluke Process Instruments for availability of RF telemetry and Bluetooth in your country.
Sealed Quenchable Thermal SQ00 Thermal Barriers
- The water tank refills automatically during quench phase
- Rugged 304-grade stainless-steel construction
- Recessed logger cavity protecting faceplate and thermocouples
- Provision for radio telemetry antenna
- Two-part faceplate enables rapid change and re-use of thermocouples
- Puller plates and hooks make front plate removal easy
| Model Number | SQ0010 | SQ0020 |
|---|---|---|
| Dimensions | 602 x 490 x 200 mm (23.7 x 19.3 x 7.9”) | |
| Thermal duration | 10 hours at 600°C (1112°F) | |
| Data logger | TP6126/TP6129 and TM variants | TP6326/TP6329 and TM variants |
| Number of thermocouples | 10 | 20 |
| Maximum operating temperature | 1000°C (1832°F) | |

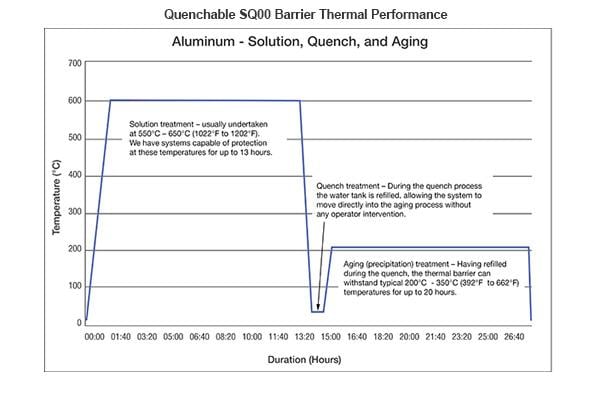

The SQ00 family of thermal barriers provide thermal protection using sealed microporous insulation around an internal water tank. In the solution treatment process the internal water tank refills when it is quenched, ensuring thermal performance is fully restored for the aging process.
The sealed quenchable thermal barriers can be used in processes up to 1000°C (1832°F) and are intended for frequent use. Typical applications include:
- Temperature profiling the homogenizing process for large aluminum slabs and billets

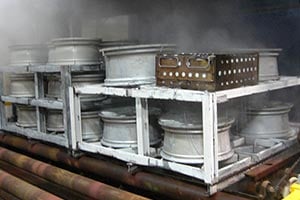

- Measuring the solution, quench and aging of complex aluminum parts such as cylinder blocks, brake calipers and alloy road wheels
- Conducting temperature uniformity surveys in compliance with AMS2750 and CQi-9 including radiation surveys
| Special and Custom Solutions
The experienced engineering team at Fluke Process Instruments has produced numerous thermal barriers for applications, ranging from temperatures of -40°C to 1350°C (-40°F to 2462°F). They can design a complete solution for your specific requirements. Contact us to request information about a custom Datapaq thermal profiling solution. |
| Radio telemetry link
The Datapaq TP6 radio telemetry system utilizes high temperature radio-frequency technology to allow data transmission from the data logger in real time. As the system travels through the process, product and process temperature data can be viewed, analyzed and reported instantaneously. This technology can be applied to monitoring key thermal processes in most industrial heating applications. |
| Thermocouple, mineral-insulated, Type K, 1.6 mm/0.06 in diameter, Nicrobell™ Sheath
Operating range 0 to 1250°C (32 to 2280°F). Fitted with miniature high-temperature plug for direct connection to data logger.
|
