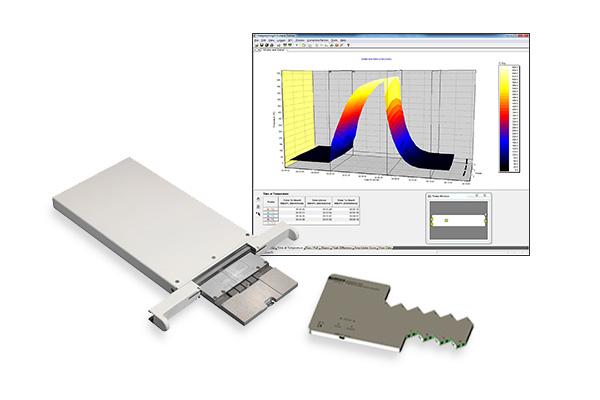

Datapaq® Furnace Tracker Systems for Glass Tempering and Bending
The Datapaq Furnace Tracker Systems for Glass Tempering and Bending from Fluke Process Instruments feature the Datapaq DP5 data logger, low height thermal barriers from our TB75/TB77 range, thermocouples and our intuitive Insight™ Software to create a complete solution.
This solution is optimized specifically for the glass tempering process, where the height at the furnace entrance is typically very limited. The system’s unique thermal barrier design includes an exterior ceramic coating to ensure there is no metal contact with furnace rollers. This solution ranges from 29 to 60mm (1.14 to 2.36 in.) high and can be used in temperatures up to 1000°C (1832°F).
Data Logger
The Datapaq DP5 is the perfect solution for low-height applications like glass tempering due to its size, which can be as low as 11.7mm (0.46 in.) and as narrow as 57 mm (2.24 in.). Once combined with the Datapaq Insight™ Software, you can display information from the data logger in real-time via the optional Radio Frequency (RF) system or via standard USB/Bluetooth connections.
- Available in 6 or 12 channel configurations
- Sample rate as fast as every 0.05 seconds
- Communication via ultra-fast USB
- User replaceable Nimh battery pack
- Compatible with the Datapaq Insight™ Software
Thermal Barriers
The Low-Height Thermal Barrier Series incorporates multiple design features including a ceramic coating, which reflects infrared heat and ensures no metal touches the furnace rollers. It also features a laser welded outer case to minimize distortion and a combined heatsink and logger tray to make data logger removal both easy and safe.
The TB7528 and TB7729 options are designed for use in both conveyor and oscillating furnaces up to 700°C (1292°F) for 8 minutes, while the TB740 is ideal for use in high-temperature conveyor furnaces up to 850°C (1562°F) for 15 minutes.

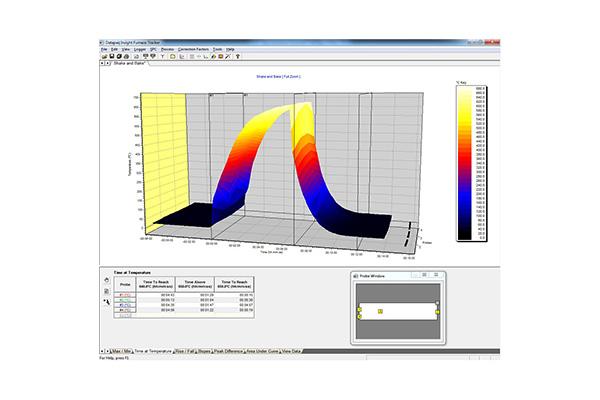

Software
Every Datapaq Insight™ Software product is designed to convert your raw data into meaningful information that can be acted on. All three software options provide a clear user interface, context sensitive help screens and wizards to assist novice users. The ability to change the language and email results directly from software enables you to share information across the plant and across the world, whether you’re on a computer or mobile device.
Datapaq DP5 Data Loggers Compatible with Low-Height Thermal Barriers
| Model Number | DP5640 | DP5600 | DP5642 |
|---|---|---|---|
| Channels | 4 | 6 | 10 |
| Temperature range | -150 to 1370°C (-238 to 2498°F) | ||
| Connectivity | USB or Bluetooth* | ||
| Memory capacity | 50,000 data points | ||
| Start/stop triggers | Manual, Rising/falling temperature | ||
| Sampling interval | 0.05 sec – 10 mins | ||
| Accuracy | ± 0.5 °C (0.9 °F) | ||
| Resolution | ± 0.1°C (0.18 °F) | ||
| Thermocouple type | Type K | ||
| Multiple run capability | Up to 10 profile runs before returning to PC | ||
| Battery | High temperature NimH rechargeable | ||
*Contact Fluke Process Instruments for availability of RF telemetry and Bluetooth in your country.
- Hight only 29mm (1,14in)
- Ceramic coating to protect furnace rollers
- Combined heatsink and datalogger organizer
| Model Number | TB7528 | TB7729 | TB7540 | TB7360 |
|---|---|---|---|---|
| Dimensions | 29 x 218 x 429 mm (1.14 x 8.58 x 16.9”) |
29 x 256 x 461 mm (1.14 x 10.08 x 18.15”) |
40 x 253 x 316 mm (1.57 x 9.96 x 12.44”) |
60 x 194 x 355 mm (2.36 x 7.64 x 13.98”) |
| Thermal duration | 8 minutes at 700ºC (1292ºF) | 15 minutes at 850ºC (1562ºF) | 22 minutes at 850ºC (1562ºF) | |
| Weight | 6 kg (13.2 lb) | 10 kg (22 lb) | 10 kg (22 lb) | 11 kg (24.2 lb) |
| Data logger | DP5640 | DP5642 | DP5600 | |
| Maximum operating temperature | 700°C (1292°F) | 850°C (1562°F) | ||
The Low-Height Thermal Barrier Series is optimized for use in short-duration, high-temperature processes such as glass tempering. Typical applications include:
Glass Bending
In glass bending applications, which are commonly found when manufacturing glass for automobiles, the overall temperature and temperature uniformity of the material is critical. The temperature must be low enough to ensure minimal distortion, yet also high enough so that the glass be press bent without damage. Our low-height, ceramic-coated thermal barriers can be placed behind glass sheets, so they are profiled as they pass through the furnace, measuring temperatures from up to 10 points on the sheet. Once the glass sheet exits the furnace, the Datapaq DP5 data logger can be retrieved safely from the thermal barrier and the data downloaded to the Insight™ Software.
Glass Tempering
Getting the correct thermal profile is critical in ensuring that the correct stress level is created in the glass. Overheating risks distortion and if temperature uniformity is poor, the glass may shatter. The TB7528 and TB7729 thermal barriers are low enough to pass through the furnace with the glass. As the system travels through the furnace, it can measure temperature from up to 10 points by using mineral insulated or glass fiber-insulated thermocouples. Furthermore, where oscillating furnaces are used, thermal barriers can be placed to one side of the glass and thermocouples can be fixed
| Special and Custom Solutions
The experienced engineering team at Fluke Process Instruments has produced numerous thermal barriers for applications, ranging from temperatures of -40°C to 1350°C (-40°F to 2462°F). They can design a complete solution for your specific requirements. Contact us to request information about a custom Datapaq thermal profiling solution. |
|
Thermocouple PA083X Range This range of thermocouples, available in lengths from 1m to 6m (39 in. to 236 in.), is constructed using special limits of error materials that are insulated in a glass fiber insulating sheath. They are each fitted with a miniature high temperature plug for direct connection to the data logger. The welded tip is exposed to ensure fastest response time and the tip can be cemented to the surface of the glass under test.
|
|
Thermocouple PA092X Range This range of mineral-insulated thermocouples is available in lengths from 1 m to 6 m (39 in. to 236 in.) and features an isolated hot junction and exterior sheath of Nicrobel. They are fitted with a miniature high-temperature plug for direct connection to the logger.
|
