MarSurf CD 140 AF (Contour measuring station)
• MarForm MMQ 400 is suitable for universal use for extensive workpiece
evaluation according to DIN ISO 1101.
• High-precision measuring axes in Z and X make every form measuring
task possible. There are MarForm MMQ 400 versions available for
• High-precision workpieces
• Unusually long workpieces
• Large and heavy workpieces
• Use in production or in inspection rooms
• Choose from a range of modules available to optimally customize the
MarForm MMQ 400 to your requirements:

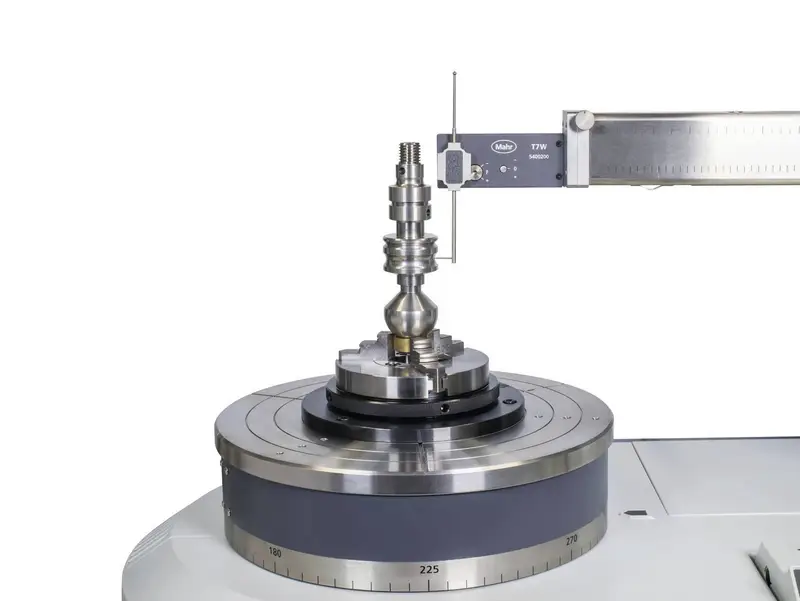

• Motorized or manual centering and tilting table
• Vertical axis (Z) with a 900 mm, 500 mm or 350 mm measuring length
• Horizontal axis (X) with a 180 mm or 280 mm measuring length and
with digital linear scales in axes X and Z. For measurements where
finding the exact, reproducible measuring position affects the result
• Manual or fully automatic probe with short measuring circle, high
linearity, low measuring force.
• Path control for quick measurement of a nominal contour
• optionally with motorized tailstock for shafts longer 200 mm
• Roughness measurement
• Switch between form probe with ruby ball and roughness probe PHT 6– 350

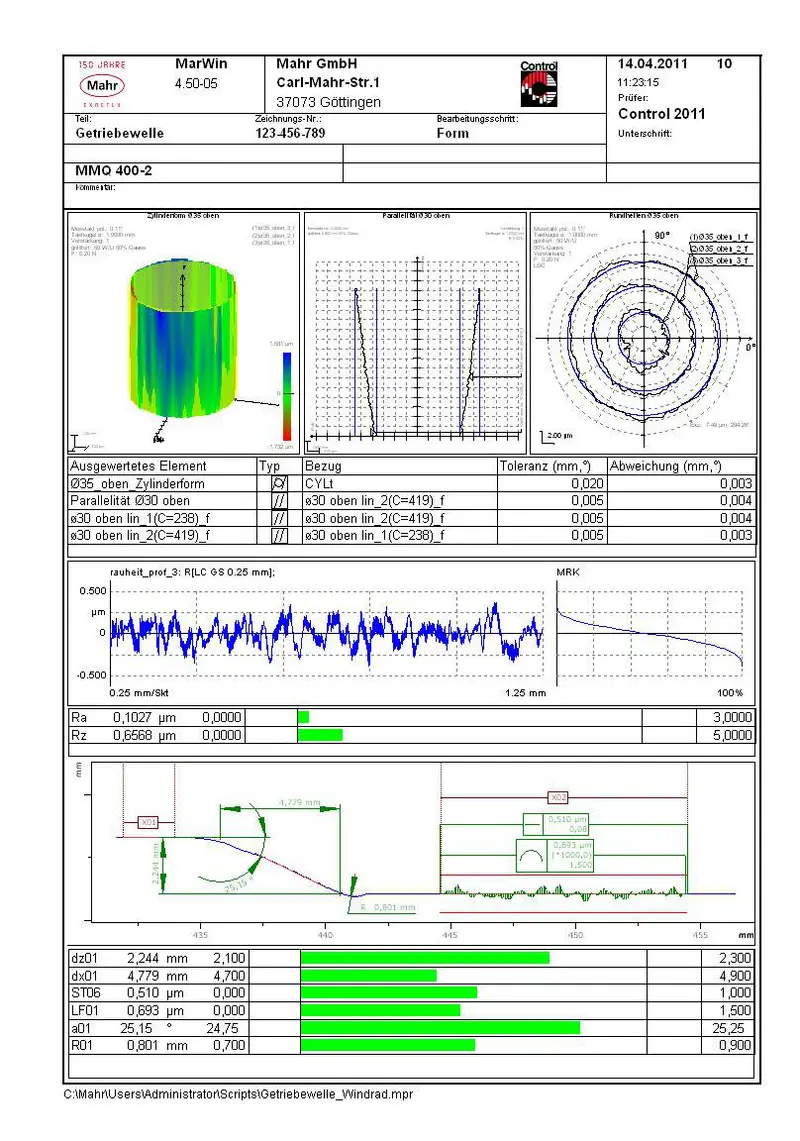

• Piston testing with MarWin Evaluation Software
• Shaft twist testing and analysis with MarWin
• Cam profile testing
• Bar to bar variation analysis at commutators
• Contour measurement and evaluation
• Path control (MCPC)
• Free form evaluation
• Vibrational velocity analysis
• Dominant roundness waviness (MBN 10455)
| Tabletop form tester overview | MMQ 400–2 Z=350 mm X=180 mm |
MMQ 400–2 Z=500 mm X=280 mm |
MMQ 400–2 Z=900 mm X=280 mm |
|---|---|---|---|
| Roundness measuring device, C-axis | |||
| Roundness deviation (μm+μm/mm measuring height) ** | 0.02 + 0.0005 | 0.02 + 0.0005 | 0.02 + 0.0005 |
| Roundness deviation (μm+μm/mm measuring height) * | 0.01 + 0.00025 | 0.01 + 0.00025 | 0.01 + 0.00025 |
| Axial runout deviation (μm+μm/mm measuring radius) ** | 0.04 + 0.0002 | 0.04 + 0.0002 | 0.04 + 0.0002 |
| Axial runout deviation (μm+μm/mm measuring radius) * | 0.02 + 0.0001 | 0.02 + 0.0001 | 0.02 + 0.0001 |
| Centering and tilting table | |||
| Centering and tilting table | manual / automatic |
manual / automatic |
automatic |
| Table diameter | 285 | 285 | 285 |
| Table load capacity, centered (N) | 600 | 600 | 600 |
| Vertical unit, Z-axis | |||
| Positioning path (mm) Z axis | – | – | – |
| Z axis positioning | – | – | – |
| Measuring path, motorized Z (mm) | 350 | 500 | 900 |
| Straightness deviation / 100 mm measuring path (μm)**, Z axis |
0.15 | 0.15 | 0.15 |
| Straightness deviation / total measuring path (μm)**, Z axis | 0.3 | 0.4 | 0.9 |
| Parallelism deviation Z-/C axis in tracing direction, measuring path (μm) |
0.5 | 0.8 | 2 |
| Measuring speed (mm/s), Z axis | 0.1– 30 | 0.1– 30 | 0.1– 30 |
| Positioning speed (mm/s), Z axis | 0.5 – 100 | 0.5 – 100 | 0.5 – 100 |
| Horizontal unit, X axis | |||
| Positioning path (mm), X axis | – | – | – |
| Measuring path, motorized X (mm) | 180 | 280 | 280 |
| Straightness deviation / 100 mm measuring path (μm)**, X-axis |
0.4 | 0.5 | 0.5 |
| Straightness deviation / total measuring path (μm)**, X axis – | 0.8 | 1.5 | 1.5 |
| Perpendicularity X/C axis, measuring path (μm) | 1 | 2 | 2 |
| Positioning speed (mm/s), X axis | 0.5– 30 | 0.5– 30 | 0.5– 30 |
| Measuring speed (mm/s), X axis | 0.5– 10 | 0.5– 10 | 0.5– 10 |
Note
* Values as maximum deviation from LSC reference circle, filter 15 undulations/revolution.
** All values in accordance with DIN ISO 1101 at 20°C ±1°C in a vibration-neutral environment, filter 15 undulations/revolution LSC or 2.5 mm LSS, 5 rpm or 5 mm/s and standard
probe arm with ball diameter 3 mm. Proof at the standard using error separation techniques. Given the number of different options available, only a few machines are described
here by way of example. Technical data for “your” MMQ is available from Mahr on request
